Architecture

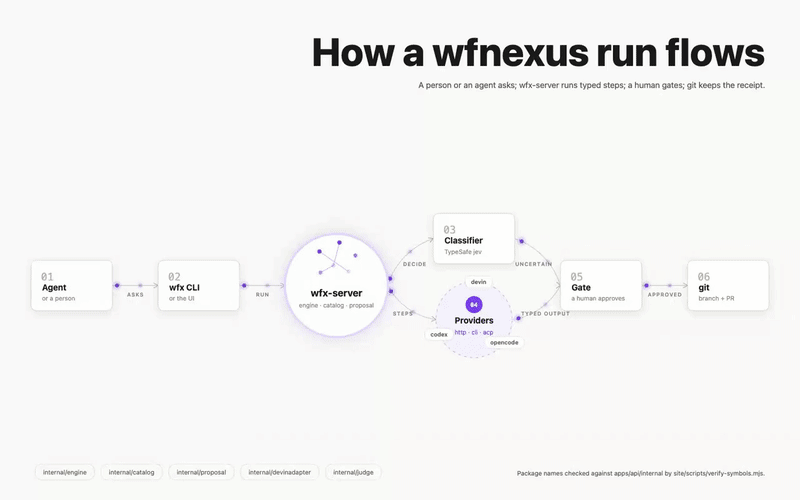

How a wfnexus run flows: an agent or a person uses wfx; wfx-server runs steps on providers and asks a classifier; a human gate approves; the change lands in git.

The loop above is an SVG, 12 seconds long. There is also a full-screen animated version, made with the diagram-motion skill’s motion canvas, and a video fallback:

The path of a run

Section titled “The path of a run”
  1. A person or an agent asks. This happens in the UI, or through wfx from a terminal or from Claude or Codex via the agent skills.
  2. wfx calls wfx-server over its REST and SSE API (internal/api). The CLI resolves the host from --url, then $WFX_API, then the current context, then http://127.0.0.1:8090.
  3. The engine runs the steps (internal/engine). It runs one toolnexus agent per agent step, or a shell node for run:, ordered as a list or a graph (internal/planner), with state in SQLite or Postgres (internal/store).
  4. Each step resolves its provider from the catalog (internal/catalog, loaded from registries.json): an http model, a cli agent, or an acp agent through internal/devinadapter (devin, opencode, codex). A step can go to another machine through a worker.
  5. The classifier decides where a question has a typed answer (internal/judge): decide: before an agent, judge: as a step, or wfx judge in a shell step. Uncertain verdicts go to a person.
  6. A human gate pauses the run (requires_approval, needs_input, ask_human) until someone runs wfx approve, wfx reject or wfx answer. internal/notify tells them.
  7. Git keeps the receipt. Templates publish their work as a branch and a PR. A change to the workflow itself becomes a proposal (internal/proposal). A finished workflow ships as a bundle (internal/bundle) with wfx publish to a host or to a git remote.

The binaries

Section titled “The binaries”
Binary Built from Role
wfx-server apps/api The engine, the API and the embedded UI (apps/ui). WFX_MODE=local uses SQLite and a folder; server uses Postgres and S3.
wfx apps/api/cmd/wfx The CLI. See the reference.
wfx-runner apps/api/cmd/wfx-runner An outbound-only worker.

Packages

Section titled “Packages”
Package Purpose
internal/api The REST and SSE surface the UI and the CLI use.
internal/engine Executes runs: steps, gates, decide, state, redaction, schedules, workers.
internal/workflow Loads the YAML and renders prompts.
internal/planner Derives execution order from consumes / produces.
internal/catalog Providers, classifiers and MCP servers: everything a step can name.
internal/devinadapter Makes an ACP agent CLI usable as a model.
internal/judge Typed questions to classifier calls, and the verdict bands.
internal/proposal A workflow change becomes a git change.
internal/secrets AES-GCM seal and open for the env store.
internal/skills The SKILL.md registry.
internal/bundle The published unit: a workflow plus its skills and MCP servers.
internal/notify Delivers a pause to a person.
internal/store Persistence (SQLite or Postgres).
